BastWAN is all the best in the world format Feather and LoRa with a RAK4260 core, 32 bits of power!, Feather pin to pin compatible with a micro USB port.

BastWAN is supported in the Arduino development environment.

Out of stock

Email when stock available

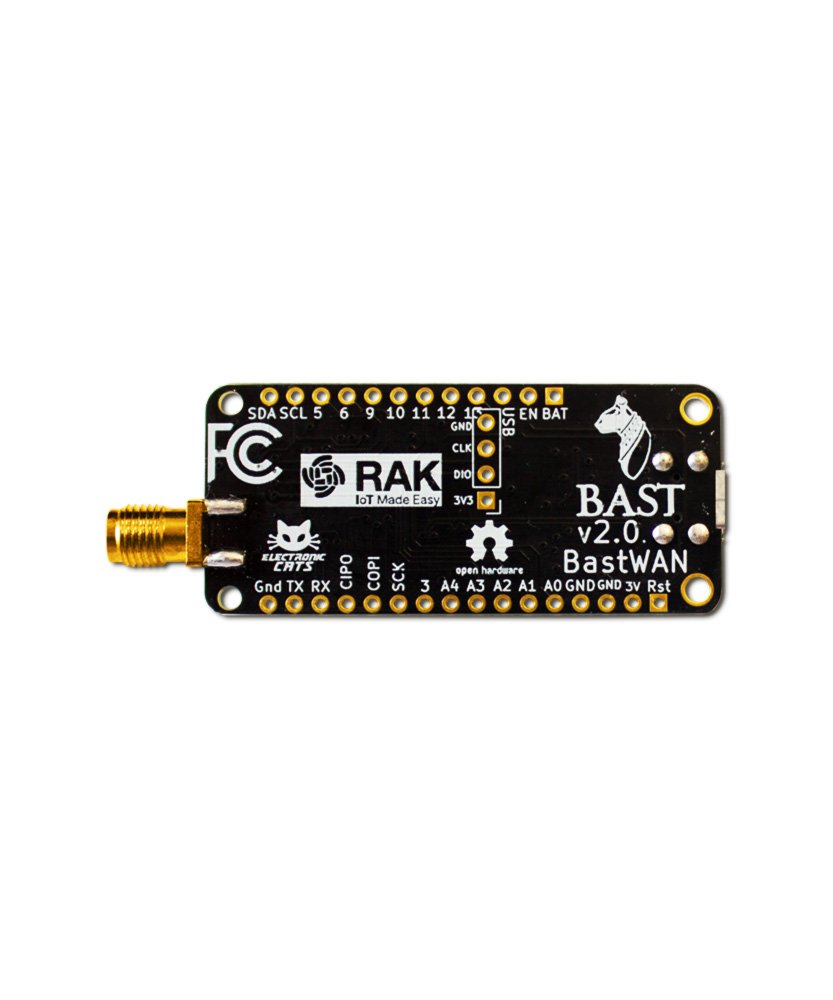

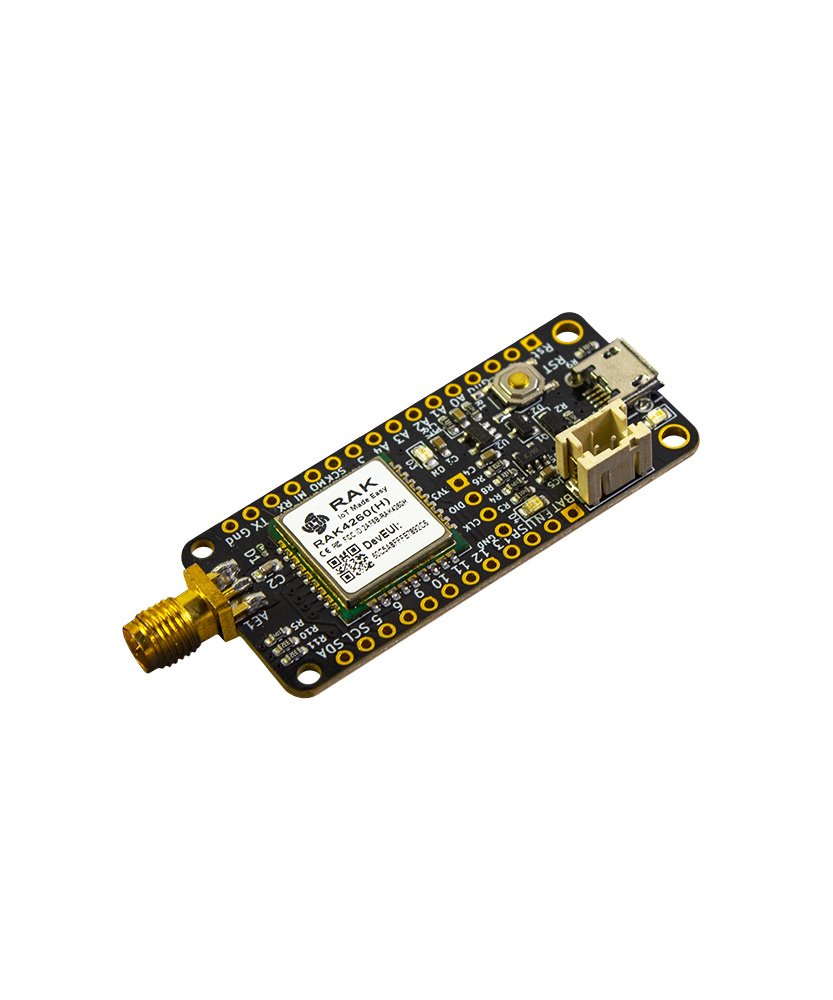

BastWAN is a Feather form factor board with the ultra-low-power, high-performance RAK4260 module at its core. It is powered by the Microchip R34 LoRa® System-in-Package (SiP) incorporating a 48Mhz SAML21 32-bit microcontroller. It also comes with native USB functionality and a LoRa transceiver.

Developed by Electronic Cats, the BastWAN features a Micro-USB port and LiPo battery charger as well as unique elements such as an ATECC608A crypto authentication chip.

For easy software development, the Arduino environment is fully supported including a LoRa/LoRaWAN® compatible stack.

The board comes preloaded with the UF2 bootloader and appears as a virtual disk drive, reprogramming is as simple as dragging and dropping the firmware file – no special tools required. Being BOSSA compatible this bootloader also can be used directly within the Arduino integrated development environment (IDE), MakeCode, and many others.

BastWAN comes fully assembled, tested, and programmed with the UF2 USB bootloader.

Key Features

  • Perfect for beginners and advanced developers.
  • Rapid prototype with LoRa/LoRaWAN technology
  • Can use a large number of sensors and actuators easily with existing expansion cards.
  • Open-source design and firmware by Electronic Cats
  • LoRa Features
  • Ultra-Low power LoRa® SiP device
  • Supports the 862 to 1020 MHz frequency range
  • Receive Sensitivity down to -148 dBm
  • Maximum Transmit Power up to 20 dBm
  • Low RX current of 17mA (typical)
  • LoRa, (G)FSK, (G)MSK modulations

Product Specifications

  • RAK4260 @ 48MHz with 3.3V logic/power
  • 256KB of FLASH + 32KB of RAM
  • 32.768 kHz crystal for clock generation & RTC
  • 3.3V regulator with 500mA peak current output
  • USB native support, comes with USB bootloader and serial port debugging
  • 20 IO pins available on pin headers
  • PWM, Hardware Serial, hardware I2C, hardware SPI support
  • 6 x 12-bit analog inputs
  • 1 x 10-bit analog output (DAC)
  • Built-in 100mA LiPo charger with charging status indicator LED
  • Pin #13 red LED for general purpose blinking
  • Power/enable pin
  • Reset pin and button
  • 4 mounting holes

Product Details

  • Product Dimension: 5.08 x 2.286 cm
  • Product Weight: 6.9 g

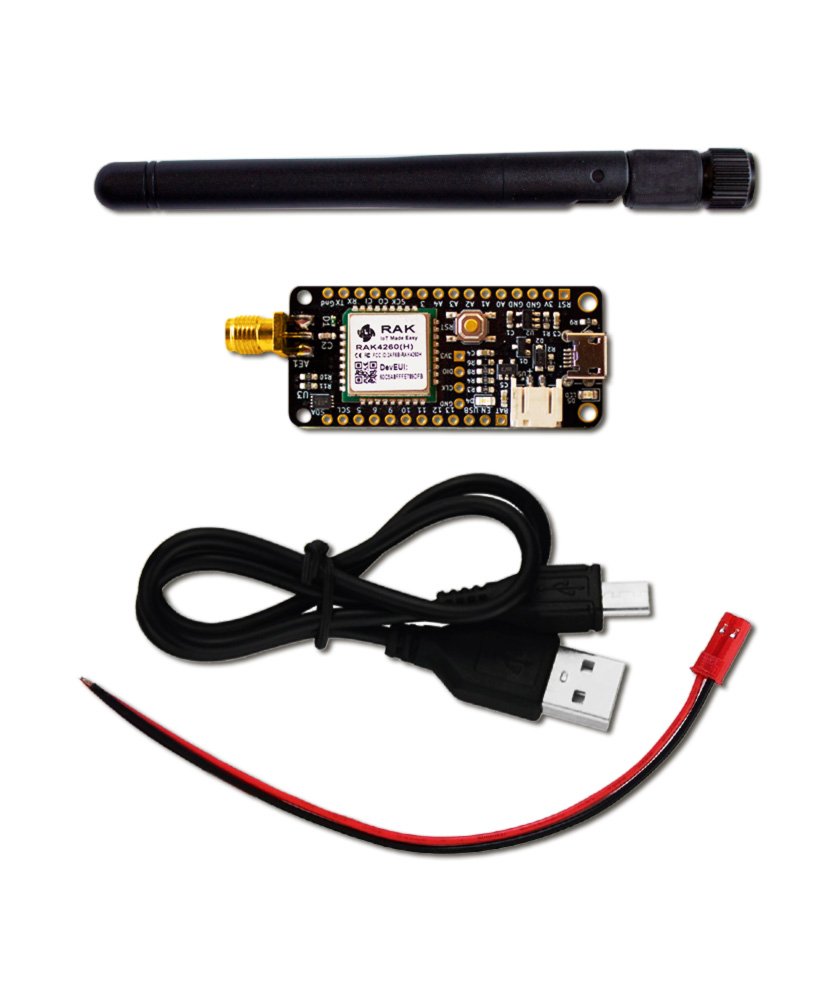

Package Inclusions

  • 1x BastWAN Development Board
  • 1x Antenna for LoRa
  • 1x Micro-USB cable
  • 1x Set of Jumper wires

Documentation

  • BastWAN Evaluation Board Datasheet



There are no reviews yet.

Be the first to review “BastWAN”

Your email address will not be published. Required fields are marked *

TECH SPECS

View repository on GitHub

MicrocontrollerRAK4260 ARM Cortex M0
Input Voltage (recommended)5V
Operating Voltage3.3V
Flash Memory256KB
RAM Memory32KB
Clock Speed48MHz
Digital I/O Pins20
PWM Digital I/O Pins20
DC Current per I/O Pin20mA
DC Current for 3.3V Pin500mA
ConnectionUSB B-Micro
CommunicationUSB, Serial, I2C, SPI
Lenght60.78mm
Width23.34mm
Weight5gr
ColorBlack



What is included or not included in the purchase?

IncludesDoesn't include
BastWANBattery
Antenna
Cable Micro-USB
Cable for battery
