CatSink USB-C PD

$9.99

SKU: ECCATT0023
Avaibility: In Stock
Share:

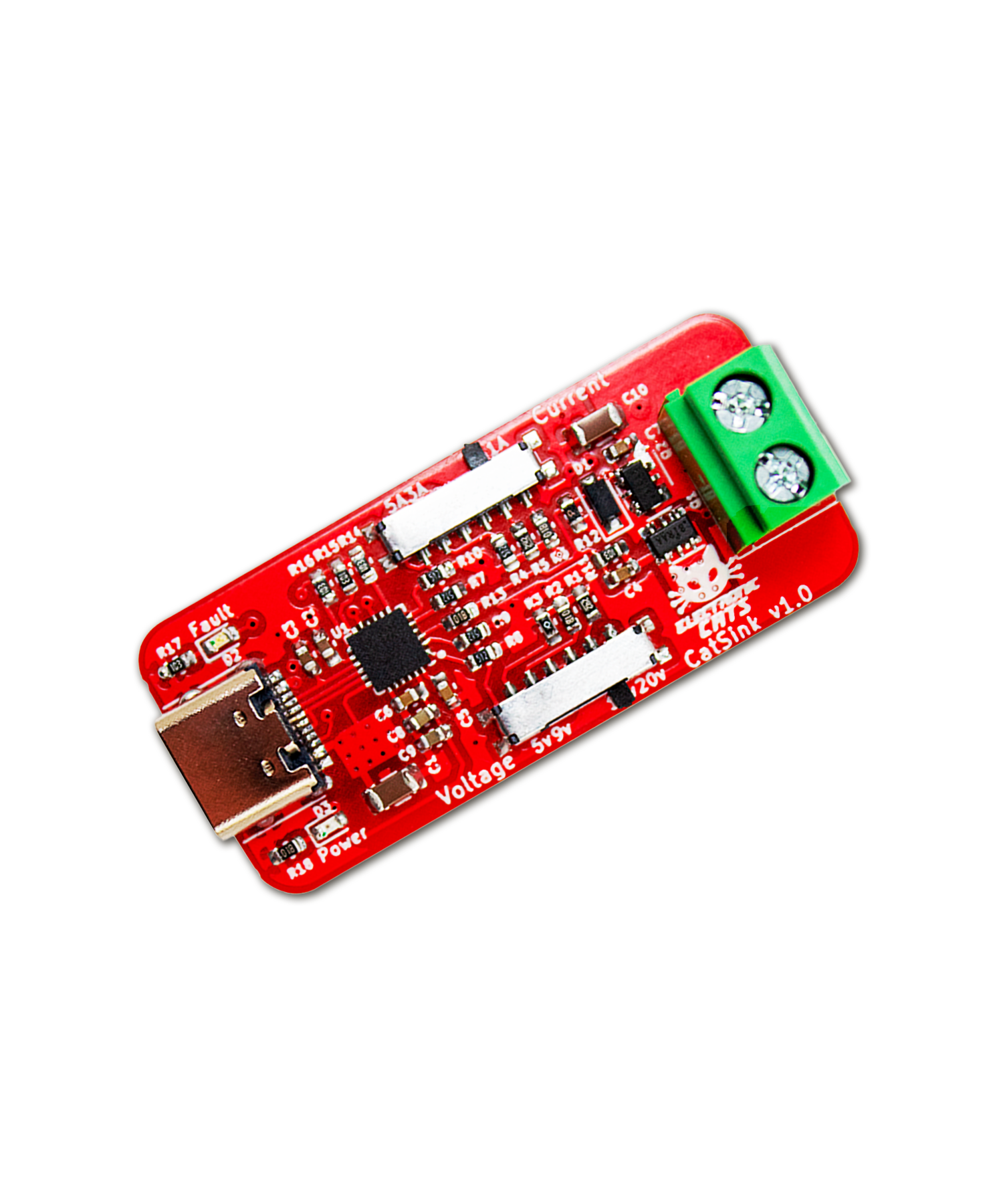

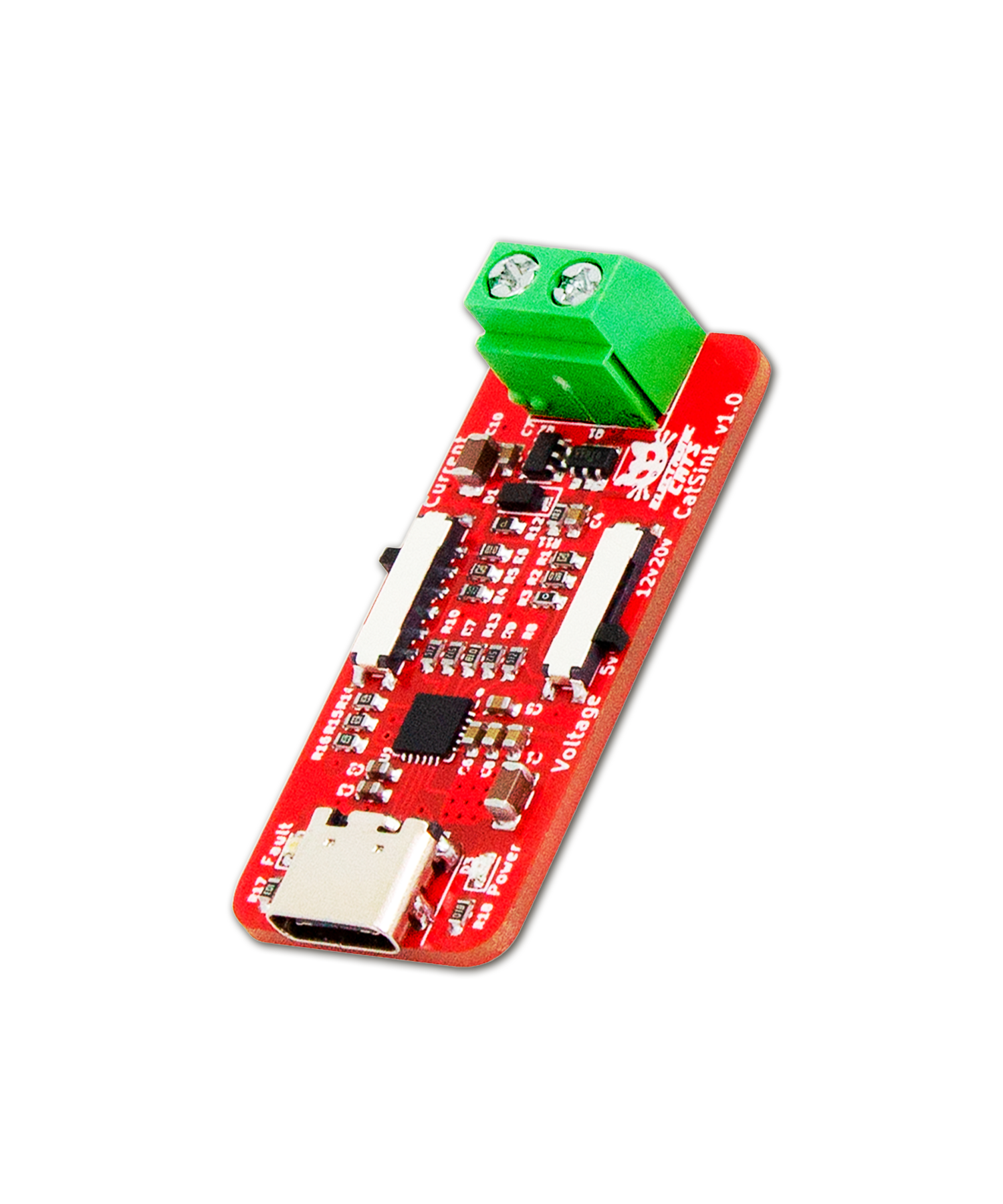

A USB-C PD Sink up to 20V 5A based on the Cypress CYPD3177 USB PD Controller.

In stock

A USB-C PD Sink up to 20V 5A based on the Cypress CYPD3177 USB PD Controller

USB-C PD offers the option to negotiate power delivery from a compatible power supply. This board plays the role of a sink device, enabling any device to be powered from a USB power supply. Any type of power connector can be attached through a 2-pin screw terminal or directly soldered into the PCB for a lower profile. The voltage can be set to 5V, 9V, 12V, or 20V and maximum negotiable current can be set to 1A, 2A, 3A, or 5A. Other voltage or current settings are possible by changing resistors. No programming needed.

There are no reviews yet.

Be the first to review “CatSink USB-C PD”

Your email address will not be published. Required fields are marked *

TECH SPECS

View repository on GitHub

USB Type-C Port Controller for Power SinksCYPD3177-24LQXQ
Input Voltage (recommended)5V
Operating Voltage3.3V
Optional output voltage5V, 9V, 12V and 20V
Optional output current1A, 2A, 3A and 5A
ConnectionUSB TYPE-C
CommunicationUSB
Lenght45.62mm
Width20.06mm
Weight5g
ColorRed



What is included or not included in the purchase?

IncludesDoesn't include
CatSink USB-C PD
